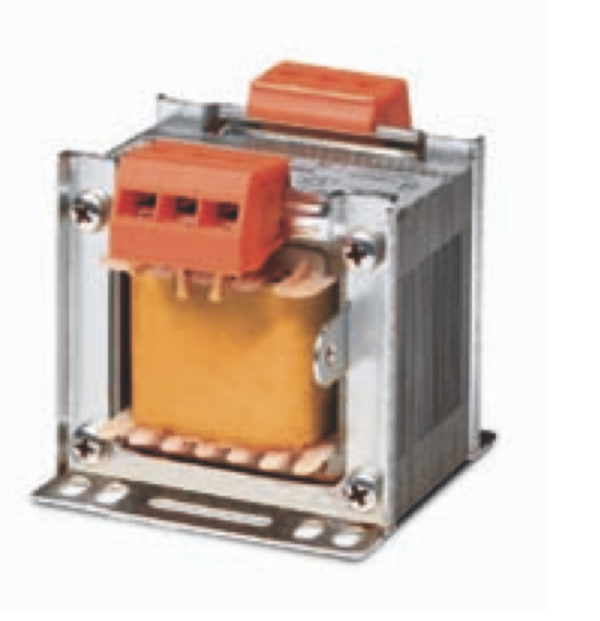

Product Description
Standard:	EN 61558-2-6; CEI 96/7
Protection against electric shock:	Class 1
Operating Time:	Continuous
Protection Degree:	IP 00
Terminals protection degree:	IP20
Max. ambient temperature:	+ 40° C
Thermal class:	B – 130° C
Frequency:	50/60Hz
Catalog:	Download >

Code	Power (VA)	Width (mm)	Depth (mm)	Height (mm)	Fixing (mm)	Fixing (mm)	Fixing (mm)	Weight (kgs)
CBM00025CC15	25	76	78	80	62,5	45	9,8X5,4	1
CBM00030CC15	30	76	78	80	62,5	45	9,8X5,4	1
CBM00040CC15	40	76	78	80	62,5	45	9,8X5,4	1
CBM00050CC15	50	76	83	80	62,5	50	9,8X5,4	1,45
CBM00075CC15	75	85	90	83	70	57	9,8X5,4	1,65
CBM00100CC15	100	85	95	83	70	62	9,8X5,4	2
CBM00150CC15	150	98	98	95	80	62	11,7X6,1	2,7
CBM00200CC15	200	98	108	95	80	72	11,7X6,1	3,2
CBM00250CC15	250	122	90	110	100	71	13,9X6,4	3,9
CBM00300CC15	300	122	100	110	100	81	13,9X6,4	5
CBM00400CC15	400	122	110	110	100	91	13,9X6,4	5,8
CBM00500CC15	500	153	118	137	125	95	14,8X8	7,2
CBM00630CC15	630	153	128	137	125	105	14,8X8	9,2
CBM00800CC15	800	153	138	137	125	115	14,8X8	10
CBM001K0CC15	1000	153	158	137	125	135	14,8X8	11,3
CBM001K2CC15	1250	195	144	178	168 - 132	101	14X8,4	17
CBM001K6CC15	1600	195	150	178	168 - 132	107	14X8,4	18,5
CBM002K0CC15	2000	195	160	178	168 - 132	117	14X8,4	20,3
CBM002K5CC15	2500	195	190	178	168 - 132	147	14X8,4	23
CBM003K0CC15	3000	195	210	178	168 - 132	167	14X8,4	31
CBM004K0CC15	4000	240	190	340	180	110	26X8,5	45
CBM005K0CC15	5000	240	210	340	180	130	26X8,5	55
CBM006K0CC15	6000	240	230	340	180	150	26X8,5	63
CBM008K0CC15	8000	280	300	420	210	178	30X10	85
CBM010K0CC15	10000	280	320	420	210	198	30X10	95
