Description

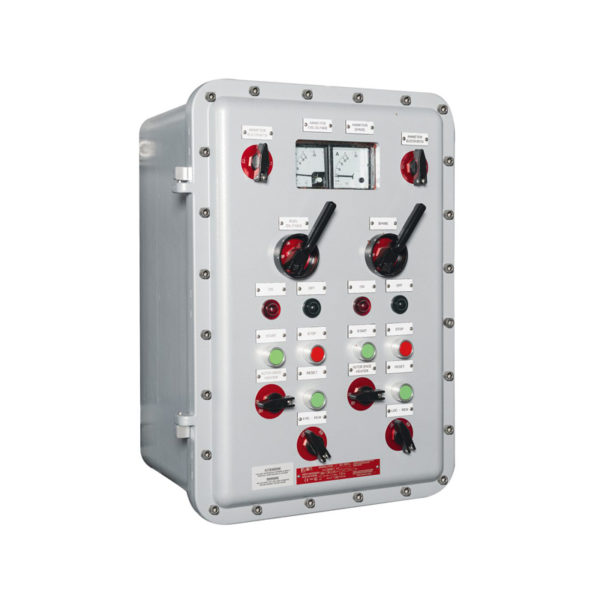

The EJB-UL Series is a range of Class 1, Division 1 – ATEX, IECEx & NEC 505 Zone 1 rated explosion-proof aluminium alloy enclosures. These can be used both as junction boxes with or without terminals and to install other electrical equipment such as switches, indicators, section switches, remote control switches and transformers. These enclosures are suitable for those industries where potentially explosive environments exist, e.g. chemical, petrochemical and pharmaceutical industries; onshore and offshore ship industries; areas at risks of explosion and fire and oil and gas extraction industries.
Installation: hazardous areas – Zone 1 / 2 (Gases) – Zone 21 / 22 (Dusts)
Classification: Group II – Category 2G 2D
Mechanical characteristics
Body/cover – marine grade copper free aluminium light alloy / stainless steel AISI 316L
Screws – stainless steel – internal / external
Internal mounting plate – hot dip galvanized steel / aluminum
Fixing – galvanized steel stirrups th.10mm
Gaskets – O-RING silicon rubber on cover (option on request)
On Request Accessories :
- External epoxy painting (any colours)
- Internal anticondensate painting orange RAL-2004
- O-Ring gaskets on cover
- Glass windows on cover
- Drain and breather valves
- Stainless steel hinges
| Specification | |
|---|---|
| Execution: | II 2 G) Ex db IIB+H2 T6…T3 ( II 2 G) Ex db [ia/ib] IIB+H2 T6…T3 ( II 2 D) Ex tb IIIC T85°C…T150°C |
| Brand/ Manufacturer | Bartec Feam |
| Compliance: | EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-11; EN/IEC 60079-31 |
| EC Types: | INERIS 13 ATEX 0022X |
| Protection Degree: | IP66 |
| Ambient Temperature: | -60°C to +60°C |
| Other Certification: | Component: INERIS 13 ATEX 9019U IECEx: IECEx INE 13_0070X INMETRO: CEPEL 12.2139 EAC: TC RU C-IT.ГБ08.В.01499 RINA: ELE18111CS_012 RUSSIAN MARINE CERTIFICATE (RMRS): 13.03518.315 NEC 505: UL 20141204-E302348 – Type rating NEMA 1, 12, 4 and 4X |
| Datasheet | Download > |
