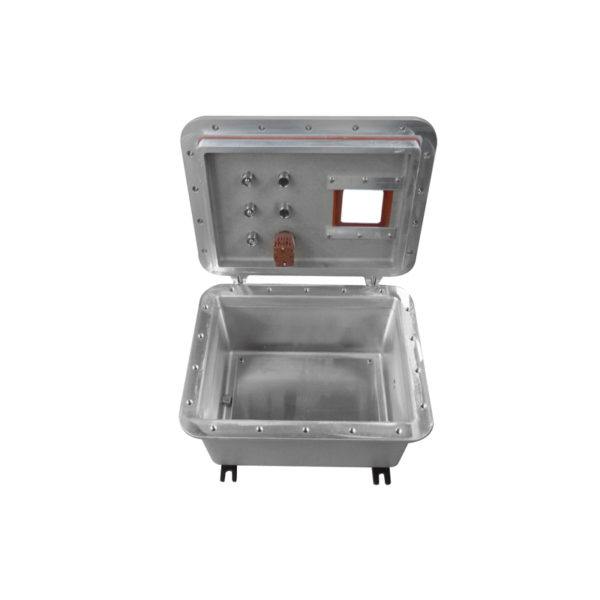

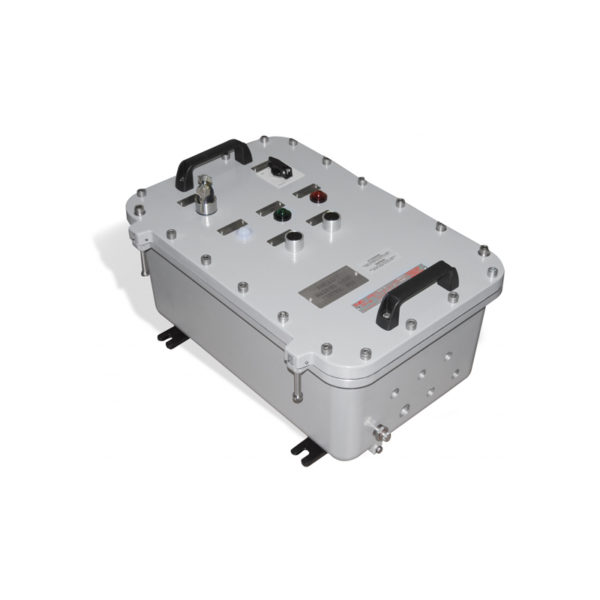

The EJC Series is a range of ATEX, IECEx & GOST Zone 1 rated explosion-proof aluminium enclosures with an innovative hinged lid. This creates a IIC rated enclosure without the size contraints usually associated with screwed lid enclosures. The EJC can be used both as junction boxes with or without terminals and to install other electrical equipment such as switches, indicators, section switches, remote control switches and transformers. These enclosures are suitable for those industries where potentially explosive environments exist, e.g. chemical, petrochemical and pharmaceutical industries; onshore and offshore ship industries; areas at risks of explosion and fire and oil and gas extraction industries.

Installation: hazardous areas – Zone 1 / 2 (Gases) – Zone 21 / 22 (Dusts)

Classification: Group II – Category 2G 2D

Mechanical characteristics

Body/cover – marine grade copper free aluminium light alloy

Screws – stainless steel

Internal mounting plate – hot dip galvanized steel / aluminum

Fixing – fixing lugs AL UNI 4514

Opening handle – insulating material fixed on cover by stainless steel screws

On Request Accessories :

• External epoxy painting (any colours)
• Internal anticondensate painting orange RAL-2004
• O-Ring gaskets on cover
• Glass windows on cover
• Drain and breather valves
