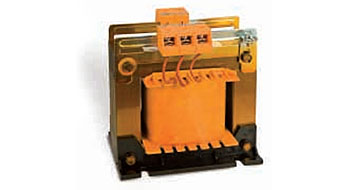

Single phase Control Insulating and Safety Transformers approved
Single phase transformers approved constructed with double insulation suitable for all control, insulation and security circu- its where it is required by the rules of installing the electrical isolation. Transformers for general use for the Canadian, U.S., European and world market.
Rated supply voltage: from 100 to 600 Vac
Rated output voltage: from 6 to 400 Vac
Rated output power: 25 – 1250 VA (UL) / 25 – 2000 VA (ENEC)
| Product Description | |
|---|---|
| Type test: | cURus – file N. E160795 |
| Standard: | EN 61558-2-2; EN 61558-2-4; EN 61558-2-6; CSA C22.2 N. 66; UL 5085 |
| Protection against electric shock: | Class 1 |
| Operating Time: | Continuous |
| Protection Degree: | IP 00 |
| Terminals protection degree: | IP20 |
| Max. ambient temperature: | + 40° C |
| Thermal class: | F – 155° C (UL) / B – 130° C (ENEC) |
| Frequency: | 50/60Hz |
| Catalog: | Download > |
