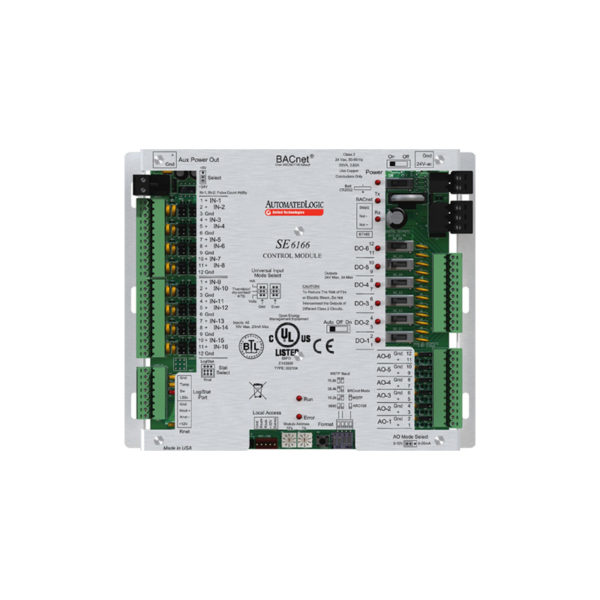

Rugged Flexibility for Single-Equipment Applications

Automated Logic’s powerful SE line provides a rugged solution for single-equipment applications. Designed to operate in a wide range of environmental conditions, SE controllers can be used in rooftop units, mechanical rooms, equipment closets or almost any other weather-tight location. Fully programmable using the EIKON®software graphic programming language, SE controllers use native BACnet communications over either a high-speed ARCNET 156 kbps network or a medium-speed MS/TP network to provide maximum flexibility and interoperability.


 BACnet Support:Conforms to the Advanced Application Controller (B-AAC) Standard Device Profile as defined in ANSI-ASHRAE Standard 135-2004 (BACnet) Annex L.
Brand/ ManufacturerALC
Communication Ports:The following ports are available on the SE control modules:
BACnet: EIA-485 port for ARCNET 156 Kbps or MS/TP (9600 bps – 76.8 kbps)
Local access: for system start-up and troubleshooting
Rnet: port for sensors and local operator interfaces
Binary Outputs:SE6166 and SE6104a both have six binary outputs. Relay contacts are rated at 3A max @ 24 Vac, configured normally open with hand/off/auto switches.
Universal Inputs:SE6166 – 16 configurable universal inputs; SE6104a – 10 configurable universal inputs.
Inputs have 12-bit A/D resolution.
Supported input types include 0-5 Vdc, 0-10 Vdc, 0-20 mA, Thermistor (10 kOhm Type II),
1 kOhm RTD (Platinum, Nickel or Balco), and Dry Contact.
NOTE: Inputs 1 and 2 support pulse counting up to 40 cycles per second (40 Hz).
Analog Outputs:SE6166 – six analog outputs; SE6104a – four analog outputs. Outputs are 0-10 Vdc or 0-20 mA selectable with 8-bit resolution.
Microprocessor:High speed 16-bit microprocessor with ARCNET communication co-procesors.
Memory:1 MByte non-volatile battery-backed RAM, 1 MByte Flash memory, 16-bit memory bus.
Battery:Shelf life of the battery is 10 years with 10,000 hours of continuous operation.
Status Indicator:LED status indicators for EIA-485 communication, running, error, power and all digital outputs.
Real-time Clock:Battery-backed real-time clock.
Addressing:Rotary dip switches for intuitive network addressing.
Protection:Built-in surge and transient protection circuitry for power, communications…
Listed by:UL916 (PAZX), cUL-916 (PAZX7), FCC Part 15–Subpart B–Class A, CE
Environmental Operating Range:-20oF to 140oF (-29oC to 60oC); 10 to 90% relative humidity, non-condensing.
Power Requirements:24 Vac ± 10%, 50-60 Hz, 20 VA
Weight:1.05 lb
Width: 8.3 in. (21.1 cm)
Height: 7 in. (17.8 cm)
Depth: 1.5 in. (3.8 cm) panel …
Mounting:Width: 7.8 in. (19.9 cm)
Height: 5 in. (12.7 cm)
5 in. mounting hole spacing
DatasheetDownload >
