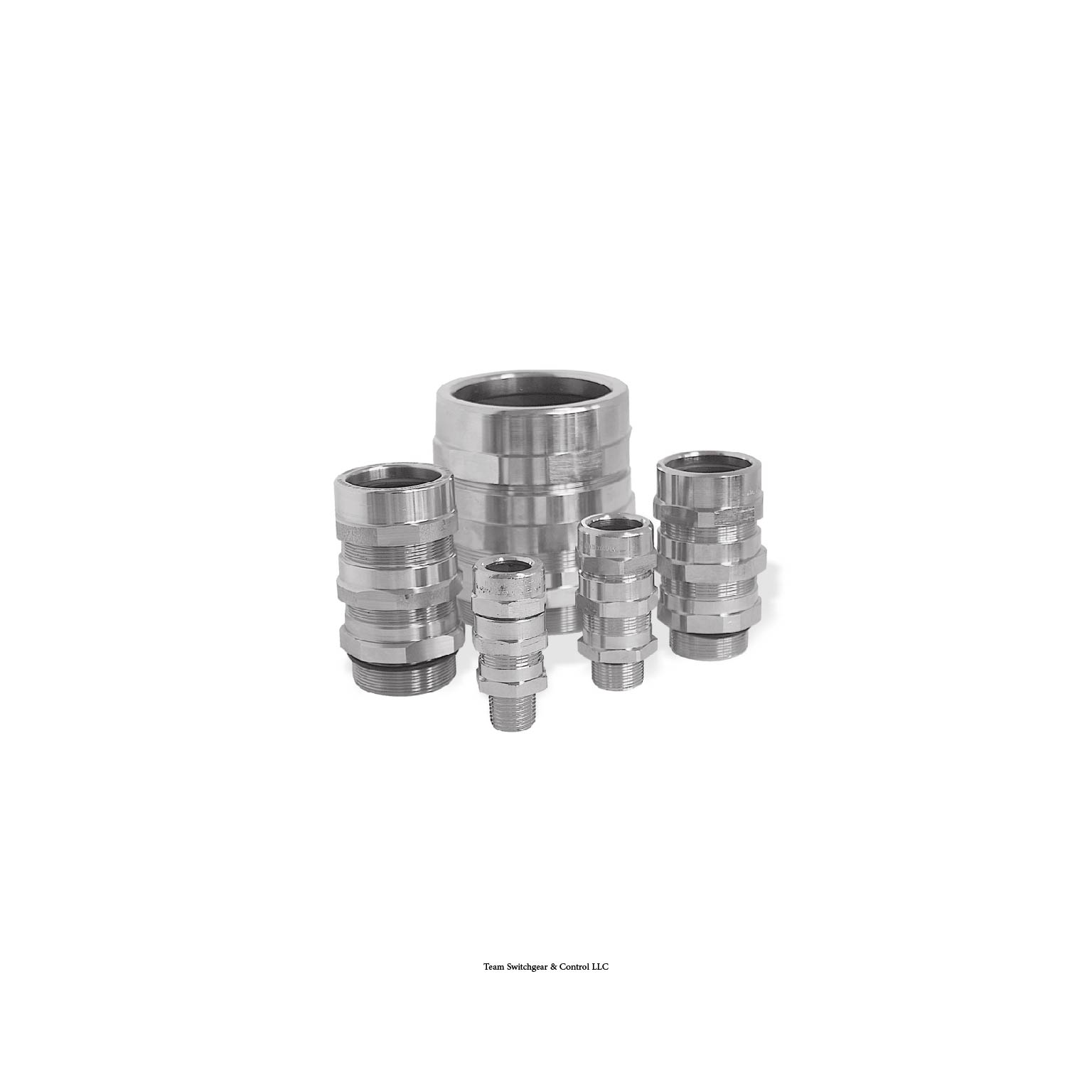

Flameproof Ex d cable glands for armoured and lead sheathed cables BARTEC PAPD series are designed to be installed in industrial plants, where potential hazardous atmospheres occur.
These areas are either classified as zone 1 and 2 or as zone 21 and 22.
Suitable for:

• steel wire armoured cables (SWA),
• steel tape armoured cables
• lead inner sheath cables

Mechanical characteristics

Body / cab Standard production:

OT-58 brass UNI EN12164/5 (ON)
AISI-316L stainless steel (XX)
Marine grade copper free aluminium (AL)(on project request only)

Applications

For steel wire armoured cables (swa) for steel tape armoured cables and for lead inner sheath cables
Double Compression Type For Indoor And Outdoor Use
Provided armour clamping using clamping arrangements suitable for all armour wire / braid types
Internal lead device for electrical bond of cable lead inner sheath
Double compression – under armour and overall of armour cable (inner and outer sealing)

Size 01 (ISO-M20, 1/2″ NPT, or 1/2″ ISO 228)

PAPD#01MON (Metric, Nickel pl. brass)
PAPD#01MXX (Metric, Stainless steel)
PAPD#01NON (NPT, Nickel pl. brass)
PAPD#01NXX (NPT, Stainless steel)
PAPD#01GON (ISO 228, Nickel pl. brass)
PAPD#01GXX (ISO 228, Stainless steel)

Size 02 (ISO-M25, 3/4″ NPT, or 3/4″ ISO 228)

PAPD#02MON / PAPD#02MXX
PAPD#02NON / PAPD#02NXX
PAPD#02GON / PAPD#02GXX

Size 03 (ISO-M32, 1″ NPT, or 1″ ISO 228)

PAPD#03MON / PAPD#03MXX
PAPD#03NON / PAPD#03NXX
PAPD#03GON / PAPD#03GXX

Size 04 (ISO-M40, 1 1/4″ NPT, or 1 1/4″ ISO 228)

PAPD#04MON / PAPD#04MXX
PAPD#04NON / PAPD#04NXX
PAPD#04GON / PAPD#04GXX

Size 05 (ISO-M50, 1 1/2″ NPT, or 1 1/2″ ISO 228)

PAPD#05MON / PAPD#05MXX
PAPD#05NON / PAPD#05NXX
PAPD#05GON / PAPD#05GXX

Size 06 (ISO-M63, 2″ NPT, or 2″ ISO 228)

PAPD#06MON / PAPD#06MXX
PAPD#06NON / PAPD#06NXX
PAPD#06GON / PAPD#06GXX

Size 07 (ISO-M75, 2 1/2″ NPT, or 2 1/2″ ISO 228)

PAPD#07MON / PAPD#07MXX
PAPD#07NON / PAPD#07NXX
PAPD#07GON / PAPD#07GXX

Size 08 (ISO-M90, 3″ NPT, or 3″ ISO 228)

PAPD#08MON / PAPD#08MXX
PAPD#08NON / PAPD#08NXX
PAPD#08GON / PAPD#08GXX

Size 09 (ISO-M100, 4″ NPT, or 4″ ISO 228)

PAPD#09MON / PAPD#09MXX
PAPD#09NON / PAPD#09NXX
PAPD#09GON / PAPD#09GXX
